SKU:86275291

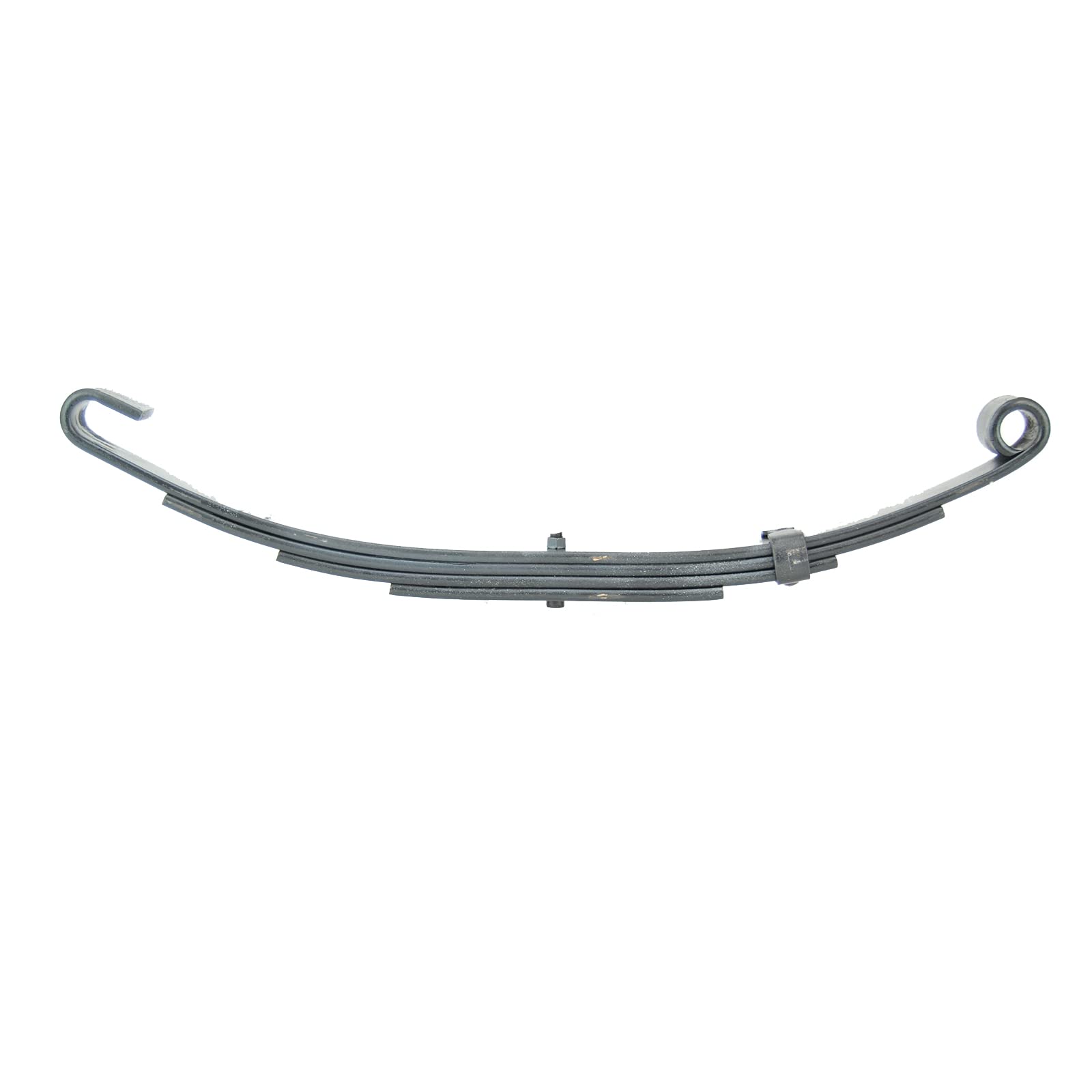

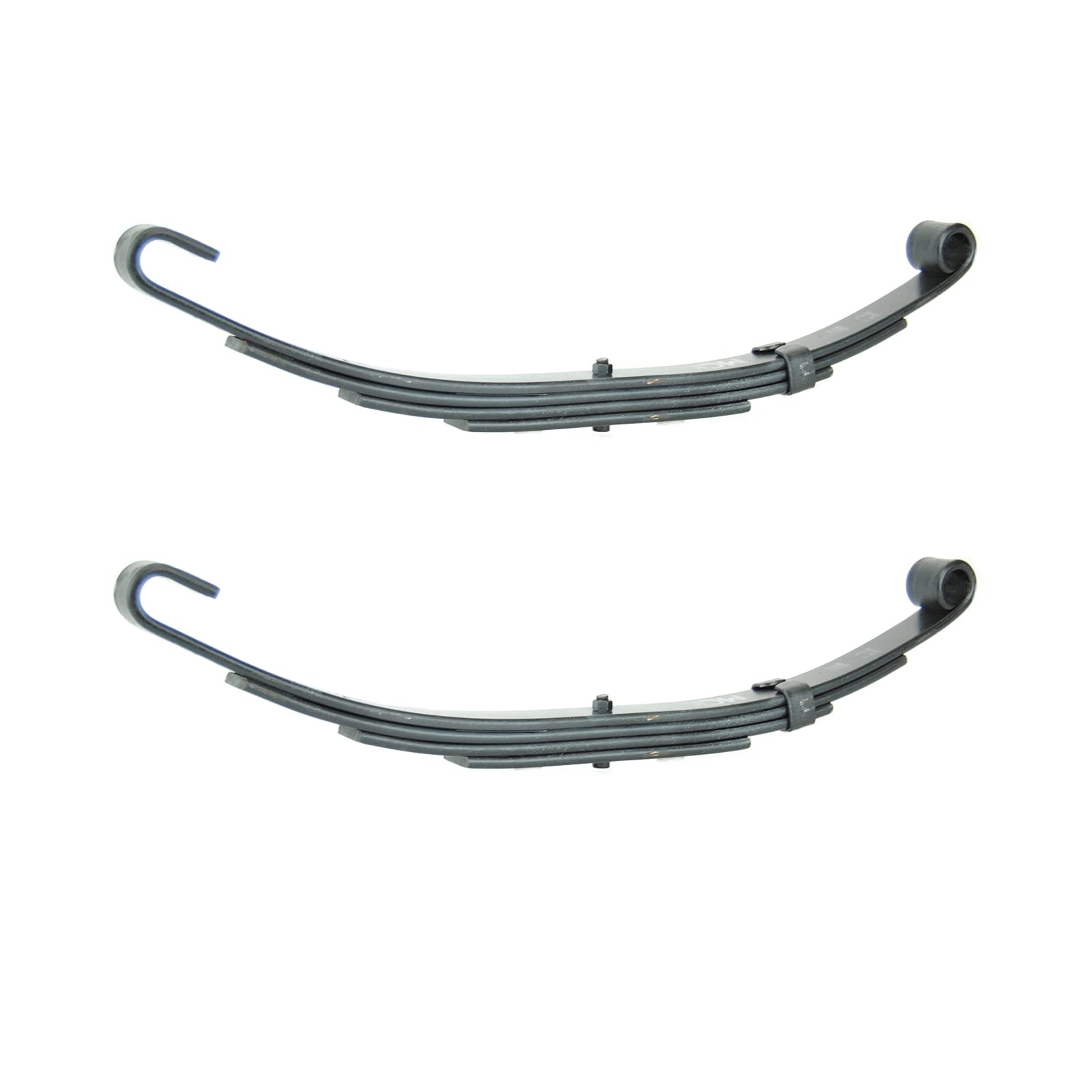

This is a 26 inch reverse curve spring with 4 leafs and is rated to 2,350lbs. This would bring a pair of these springs to 4,700 pounds. These are common on 5,000lb trailer axles. The spring is 1 3/4 inch wide, and measures 26 1/4 from center of front eye to the end of the rear curve; if your springs measure slightly longer than 26 inches that is normal, springs can flatten out over time and measure slightly longer than what they did when they were new. To get a more accurate measurement you will want to measure the distance between your hangers.
26 inches from center of front eye to center of rear curve
4 Leaf slipper spring
Rated at 2,350lbs per spring (4,700lbs per pair)
1 3/4 inch wide
9/16 inch inside diameter nylon bushing included
Free arch measurement 3 1/2 inches stock
Springs as described ,worked well ,also included plastics spacer for spring
